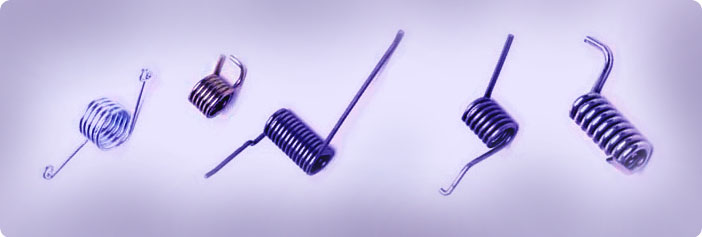

There are single-bodied torsion springs and double-bodied torsion springs. Double Torsion Springs should be designed so they are coiled out from the center rather than in from the ends. See figure of double torsion spring design below.

Some of the more common end configurations are shown below in SMI’s figure of Common Helical Torsion Spring End Configurations.

See the diagram for Specifying Load and Deflection Requirements for Torsion Springs in our Technical Resources.

Wire Diameter
We manufacture torsion springs with a wire diameter of 0.008” up to 0.192” (0.20 mm to 4.87 mm).

Material Type
The most common material types for springs are music wire, stainless steel, and hard drawn. We use all types of material.

To request a Torsion Spring quote, attach your blueprint/sketch or please fill out the following:

Quote Form Torsion Springs
	Spring Information:
Material:
Wire Diameter:
Outside Diameter:
Number of Coils:
Length of Legs:	1. 2.
Direction of Wind:
Load:
Finishes:
Quantity:
Additional Information:
	Contact Information:
*Name:
*Company:
*City:
*State:
Country:
*Phone:
Fax:
E-mail:
Date:
	Attach a File:
File:
